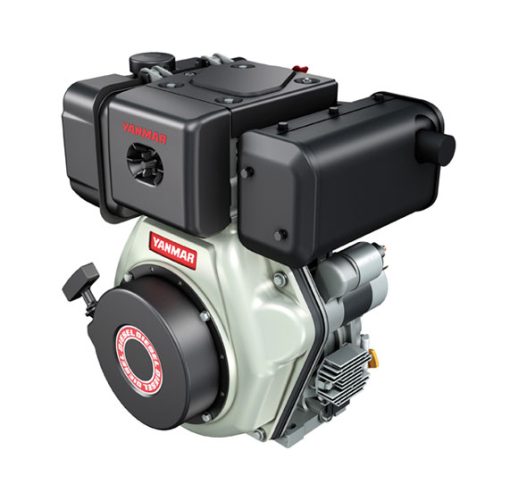

Yanmar L100 – V 9.1hp (6.8Kw) Electric Start Diesel Engine, Horizontal 1″ Straight Shaft With Keyway
The L100 – V is a 9.1hp (6.8kw), horizontal 1? straight shaft diesel engine from Yanmar. The electric start single-cylinder diesel engine is forced air-cooled, 4 strokes (cycle), and comes complete with the starter motor, fuel tank, and exhaust for easy installation. The direct injection set-up offers great fuel economy and a max output of 6.8kW / 9.1hp (@3600RPM). Yanmar L-V series is the version simple to install and easy to start, making them the ideal replacement diesel engine for pressure and jet washers, diesel air compressors, diesel compactor/wacker plates, generators, and wood splitters. This Yanmar L100 – V engine weighs approximately 54Kg including the starter motor, recoil start, exhaust, and fuel tank (dry). Â
- Vertical cylinder, 4-cycle, air-cooled diesel engine.
- Compact, Direct injection Engine
- Â Easy installation & Low Fuel Consumption.
- Low Vibration and Low Noise.
- A little engine built to stand up to hard work.
- Fast, effortless starts from a one-pull recoil starter.
Product Application
Yanmar L-V series are the version and simple to install and easy to start, making them the ideal replacement diesel engine for
- pressure and jet washers
- diesel air compressors
- diesel compactor/wacker plates
- generators and wood splitters
Â
Â
Specifications
| Models | L100N | ||
|---|---|---|---|
| Â No. of Cylinders | 1 | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Bore x Stroke | mm | ?86 x 75 | |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Displacement | liter | 0.435 | |
| Maximum Rated Output | Engine Speed | min-1(rpm) | 3000~3600 |
| Output | kW[hp] | 6.5~7.4 [8.8~10.0] | |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Engine Dry mass | kg | 53.5 / 48.5 | |
| Dimensions | Length x Width x Height | mm | 412 x 471 x 494 |
| Weight | 72 kg |
|---|---|
| Dimensions | 450 × 500 × 550 cm |
