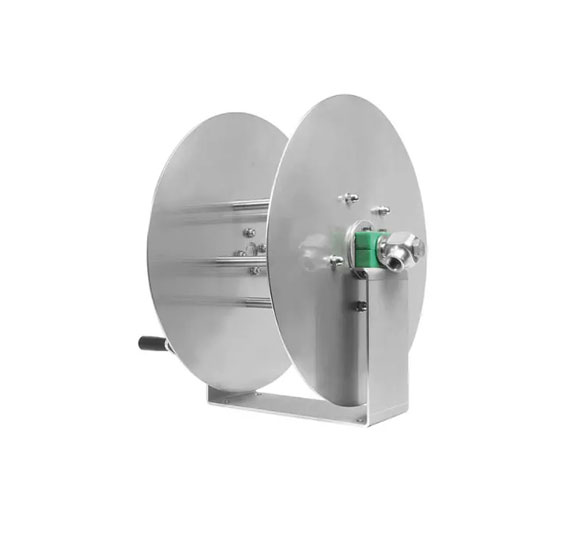

High Pressure Hose Reel 1/2″Female S/Steel Swivel

Hose reel to be used for hoses with outer diameter 22.0 mm = 40m length
Inlet: 1/2″ F
Outlet: 1/2″ F
Nominal diameter: 12
Pressure: 300 bar
Temperature: 90°C
Weight: 13.0 kg
Material: Stainless steel V2A / AISI 304
Equipped with a stainless steel swivel ST-322
The base frame is made out of stainless steel V2A / AISI 304 and stands for higheist stability
Equipped with an especially wide orifice of 12 mm
Suitable media: water or water with cleaning chemicals, air, oils and grease
The drum hub consists of 5 sturdy stainless steel rods and runs in specially maintenance-free bearing sleeves
The drum rotates by means of an adjustable handwheel being equipped with a free-wheel polyamide grip
A mechanical brake makes it possible to lock in 6 positions
Not suitable for being mounted at walls and ceiling.

Height: 460 mm
Length 440 mm
Depth 240 mm

Made in Germany
